Computer Aided Design

Casing Closed



This design is for a case that encloses the motor and all electrical parts, keeping water and other elements out. Its shape reflects that of a bike seat, and emphasizes the use of minimal material. Its shape is also very aero-dynamic. The electrical components sit inside with minimal to no room to move around.

Casing Opened

This view of the casing opened shows how our device fits inside of it, and also how it can be opened so that a part of the device may be replaced  if necessary.

Dimensioned Drawing

of casing

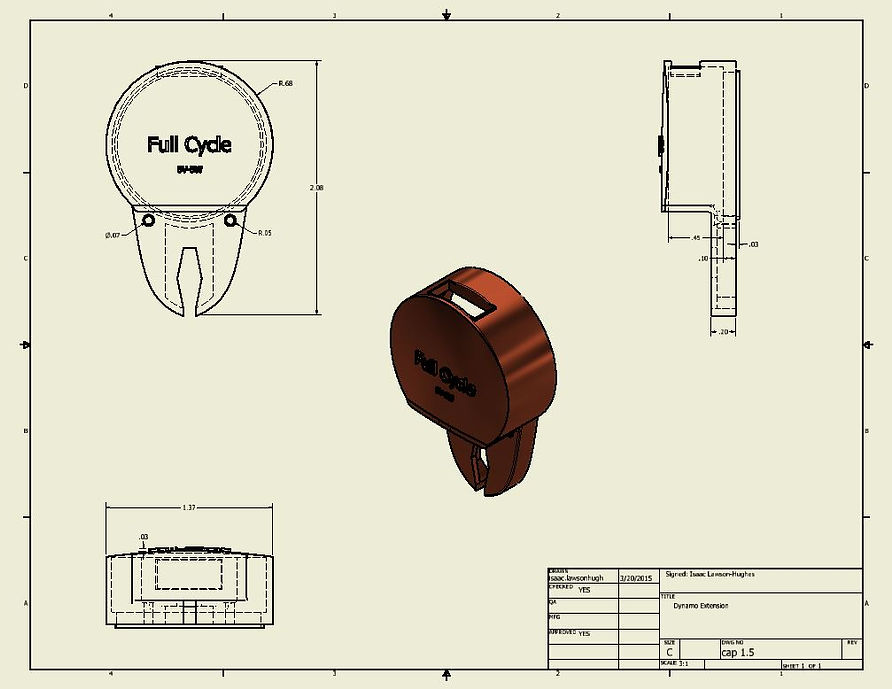

Cap 1.5

Cap 1.5 Dimensions
